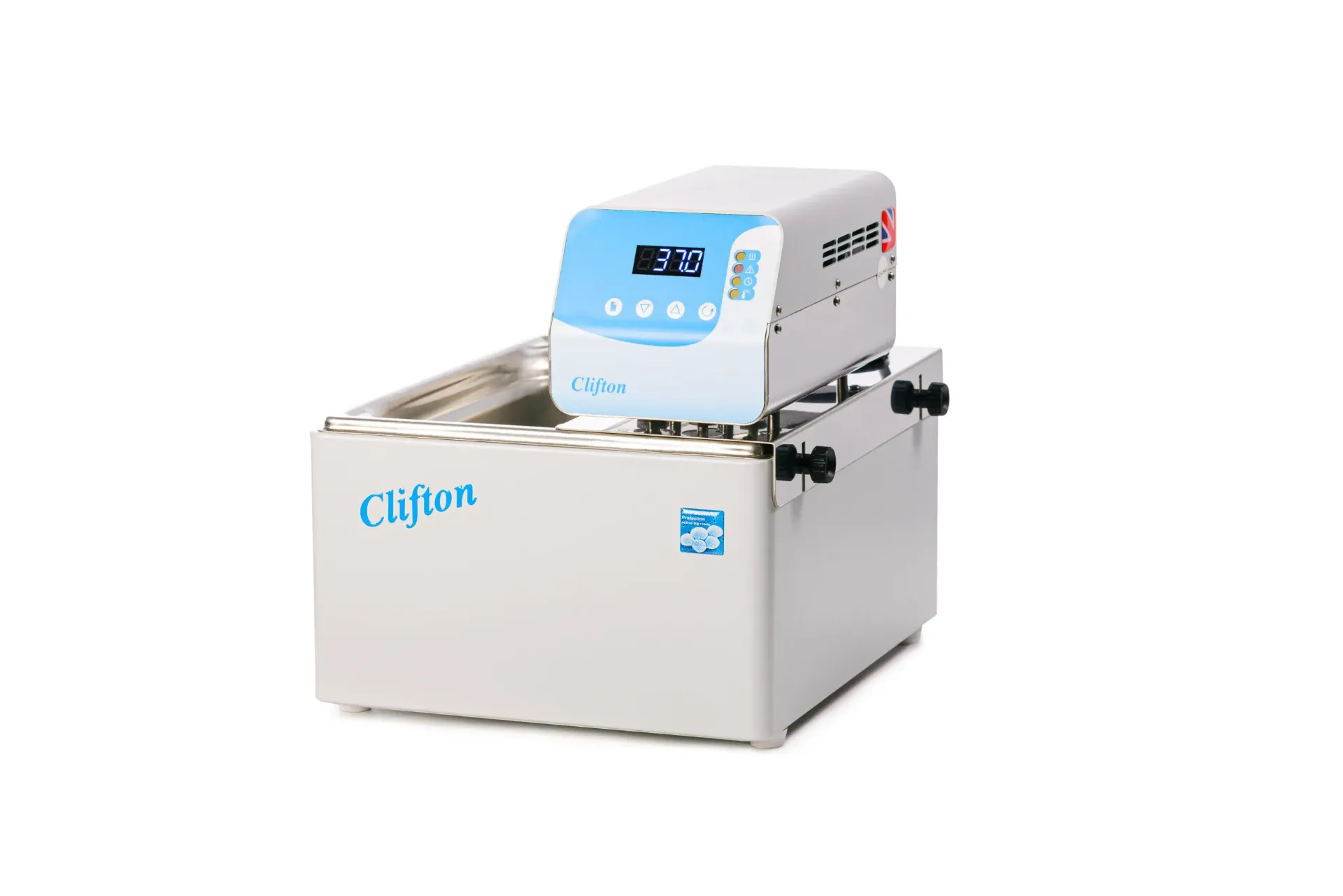

Clifton NE4-8P Circulating Digital Water Bath – 8 Litre

Precision temperature control. Powerful circulation. Internal or external use.

The Clifton NE4-8P is an 8 litre circulating digital water bath designed for precise temperature control both within the bath and for circulating temperature-controlled liquid around an external closed circuit.

Featuring PID digital control and a powerful 10 litre/min circulation pump, the NE4-8P delivers exceptional temperature stability while providing the flexibility to support external temperature-controlled equipment and applications.

Features & Benefits

  • 8 litre capacity
  • Temperature range: Ambient +5°C to 99°C
  • Precision PID digital temperature control
  • Clear LED temperature display
  • 0.1°C resolution
  • Excellent ±0.05°C sensitivity
  • Exceptional ±0.01°C uniformity
  • 10 litre/min circulation pump
  • 150 mbar pump pressure
  • Inlet and outlet ports for external closed-circuit circulation
  • Can also be used as a conventional stirred water bath
  • 00:01 to 99:59 hh:mm timer
  • Automatic under/over-temperature alarm
  • Low liquid level protection
  • Durable stainless steel construction
  • Factory calibrated at 37°C and 85°C
  • Compatible with DC1-300 immersion cooler for below-ambient applications
  • 3 Year Warranty
  • Made in Great Britain

Ideal for laboratories requiring precise temperature control with the added flexibility of external circulation, combining excellent bath uniformity with a powerful circulation pump in one compact unit.

Explore the Clifton NE4-P Range


Choose the capacity that best suits your laboratory while benefiting from the precision PID control and external circulation capability of the Clifton NE4-P range.

Precise control. Powerful circulation. Greater laboratory flexibility.

Made in Great Britain

The Clifton Range is made here in Great Britain with the highest quality of materials.

REQUEST A QUOTE

£ 990.00 £ 990.00
(Tax excluded)
  • Manufacturer
  • Brand
  • Product Code
  • Model Number
  • Size
  • Temperature Range
  • Temperature Control
  • Temperature Alarm
  • Sensitivity
  • Uniformity
  • Timer
  • Pump Capacity and Pressure
  • Pump Connection Ports
  • Heater Power
  • Voltage
  • Drain Outlet
  • External Dimensions (mm)
  • Internal Dimensions (mm)
  • Water Level Max. (mm)
  • Max Depth Above False Base (mm)
Contact Us
Terms and Conditions
Manufacturer Nickel Electro
Brand Clifton
Product Code BTH-NE4-8P-1
Model Number NE4-8P
Size 8 Litres
Temperature Range Ambient + 5°C - 99°C
Temperature Control PID Digital, LED display showing actual or set temperature, resolution 0.1°C
Temperature Alarm Under/over temperature alarm is automatically set 4˚C above and 4˚C below set point
Sensitivity ±0.5°C
Uniformity ±0.01°C
Timer Variable, 00:01 to 99:59 hh:mm Activates at set temperature. End timed period, audible buzzer and and "end" message
Pump Capacity and Pressure 10 litres/min - 150mbar Pressue drop can occur with pipe height, length, bore, bends and liquid temperatures below ambient
Pump Connection Ports Inlet and outlet ports take 4mm bore x 6mm o/d tubing
Heater Power 1250W
Voltage 120V or 230V models available 50-60Hz
Drain Outlet No
External Dimensions (mm) 271w x 332d x 170h
Internal Dimensions (mm) 129w x 300d x 150h
Water Level Max. (mm) 130
Max Depth Above False Base (mm) 95
Manufacturer: Nickel Electro
Brand: Clifton
Product Code: BTH-NE4-8P-1
Model Number: NE4-8P
Size: 8 Litres
Temperature Range: Ambient + 5°C - 99°C
Temperature Control: PID Digital, LED display showing actual or set temperature, resolution 0.1°C
Temperature Alarm: Under/over temperature alarm is automatically set 4˚C above and 4˚C below set point
Sensitivity: ±0.5°C
Uniformity: ±0.01°C
Timer: Variable, 00:01 to 99:59 hh:mm Activates at set temperature. End timed period, audible buzzer and and "end" message
Pump Capacity and Pressure: 10 litres/min - 150mbar Pressue drop can occur with pipe height, length, bore, bends and liquid temperatures below ambient
Pump Connection Ports: Inlet and outlet ports take 4mm bore x 6mm o/d tubing
Heater Power: 1250W
Voltage: 120V or 230V models available 50-60Hz
Drain Outlet: No
External Dimensions (mm): 271w x 332d x 170h
Internal Dimensions (mm): 129w x 300d x 150h
Water Level Max. (mm): 130
Max Depth Above False Base (mm): 95
