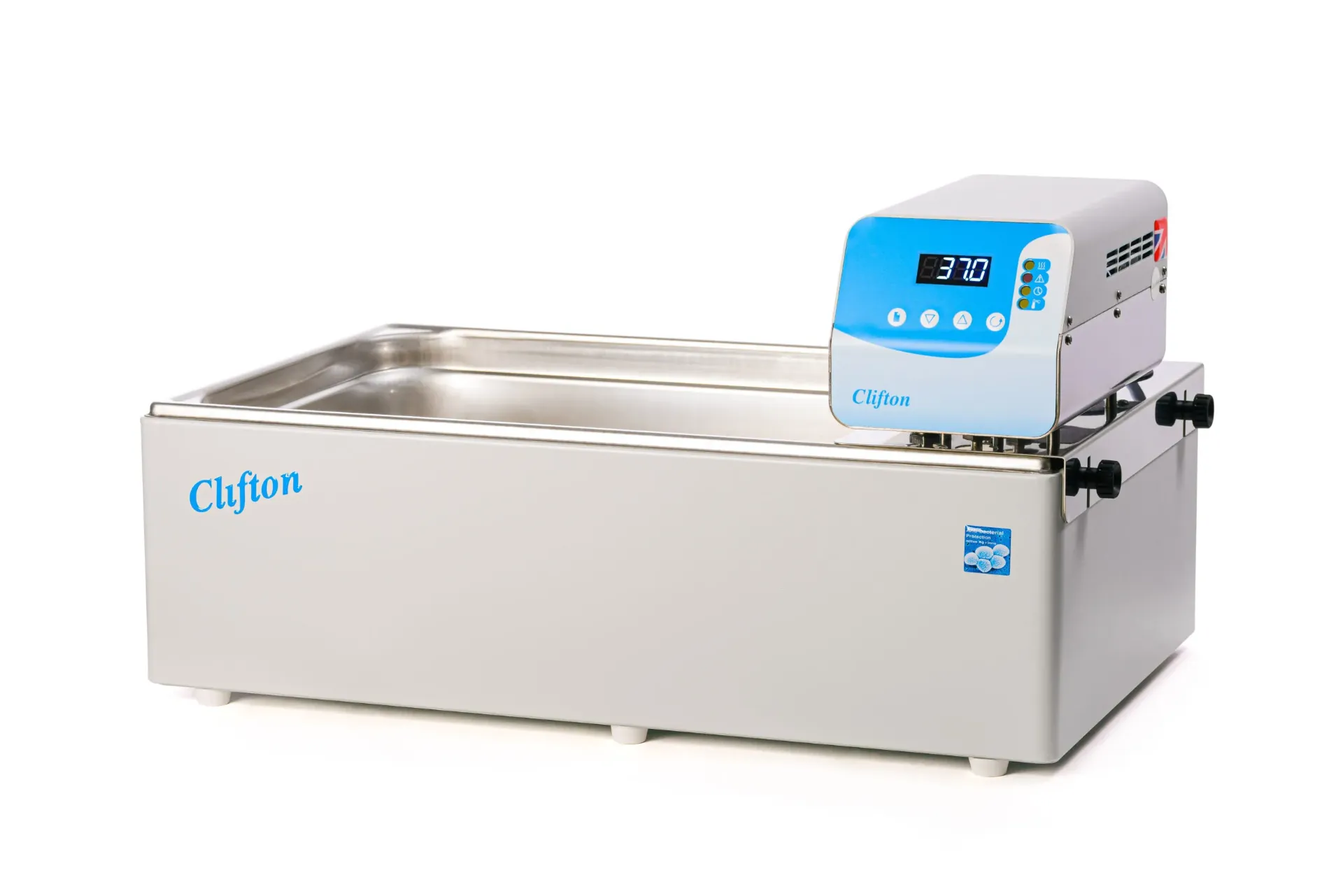

Clifton NE4-22P Circulating Digital Water Bath – 22 Litre

Greater capacity. Precision control. Powerful external circulation.

The Clifton NE4-22P is a 22 litre circulating digital water bath designed for precise temperature control both within the bath and for circulating temperature-controlled liquid around an external closed circuit.

Featuring precision PID digital control and a powerful 10 litre/min circulation pump, the NE4-22P combines exceptional temperature uniformity with generous working capacity for both internal and externally connected laboratory applications.

Features & Benefits

  • 22 litre capacity
  • Temperature range: Ambient +5°C to 99°C
  • Precision PID digital temperature control
  • Clear LED temperature display
  • 0.1°C resolution
  • Excellent ±0.05°C sensitivity
  • Exceptional ±0.01°C uniformity
  • Powerful 10 litre/min circulation pump
  • 150 mbar pump pressure
  • Inlet and outlet ports for external closed-circuit circulation
  • Can also be used as a conventional stirred water bath
  • 00:01 to 99:59 hh:mm timer
  • Timer activates once the set temperature is reached
  • Automatic under/over-temperature alarm
  • Low liquid level protection
  • Durable stainless steel construction
  • Factory calibrated at 37°C and 85°C
  • Compatible with the DC1-300 immersion cooler for below-ambient applications
  • 3 Year Warranty
  • Made in Great Britain

Ideal for laboratories requiring increased working capacity with the flexibility of external circulation, providing precise temperature control for immersed samples and externally connected equipment.

Explore the Clifton NE4-P Range

Choose the capacity that best suits your laboratory while benefiting from the precision PID control and powerful external circulation capability of the Clifton NE4-P range.

More capacity. Powerful circulation. Precision you can rely on.

Made in Great Britain

The Clifton Range is made here in Great Britain with the highest quality of materials.

REQUEST A QUOTE

£ 1,050.00 £ 1,050.00
(Tax excluded)
  • Manufacturer
  • Brand
  • Product Code
  • Model Number
  • Size
  • Temperature Range
  • Temperature Control
  • Temperature Alarm
  • Sensitivity
  • Uniformity
  • Timer
  • Pump Capacity and Pressure
  • Pump Connection Ports
  • Heater Power
  • Voltage
  • Drain Outlet
  • External Dimensions (mm)
  • Internal Dimensions (mm)
  • Water Level Max. (mm)
  • Max Depth Above False Base (mm)
Contact Us
Terms and Conditions
Manufacturer Nickel Electro
Brand Clifton
Product Code BTH-NE4-22P-1
Model Number NE4-22P
Size 22 Litres
Temperature Range Ambient + 5°C - 99°C
Temperature Control PID Digital, LED display showing actual or set temperature, resolution 0.1°C
Temperature Alarm Under/over temperature alarm is automatically set 4˚C above and 4˚C below set point
Sensitivity ±0.5°C
Uniformity ±0.01°C
Timer Variable, 00:01 to 99:59 hh:mm Activates at set temperature. End timed period, audible buzzer and and "end" message
Pump Capacity and Pressure 10 litres/min - 150mbar Pressue drop can occur with pipe height, length, bore, bends and liquid temperatures below ambient
Pump Connection Ports Inlet and outlet ports take 4mm bore x 6mm o/d tubing
Heater Power 1250W
Voltage 120V or 230V models available 50-60Hz
Drain Outlet No
External Dimensions (mm) 537w x 332d x 170h
Internal Dimensions (mm) 395w x 298d x 150h
Water Level Max. (mm) 130
Max Depth Above False Base (mm) 95
Manufacturer: Nickel Electro
Brand: Clifton
Product Code: BTH-NE4-22P-1
Model Number: NE4-22P
Size: 22 Litres
Temperature Range: Ambient + 5°C - 99°C
Temperature Control: PID Digital, LED display showing actual or set temperature, resolution 0.1°C
Temperature Alarm: Under/over temperature alarm is automatically set 4˚C above and 4˚C below set point
Sensitivity: ±0.5°C
Uniformity: ±0.01°C
Timer: Variable, 00:01 to 99:59 hh:mm Activates at set temperature. End timed period, audible buzzer and and "end" message
Pump Capacity and Pressure: 10 litres/min - 150mbar Pressue drop can occur with pipe height, length, bore, bends and liquid temperatures below ambient
Pump Connection Ports: Inlet and outlet ports take 4mm bore x 6mm o/d tubing
Heater Power: 1250W
Voltage: 120V or 230V models available 50-60Hz
Drain Outlet: No
External Dimensions (mm): 537w x 332d x 170h
Internal Dimensions (mm): 395w x 298d x 150h
Water Level Max. (mm): 130
Max Depth Above False Base (mm): 95
Documents
Bath-Brochure-2024-compressed.pdf NE4-P Series Spec Sheet.pdf
