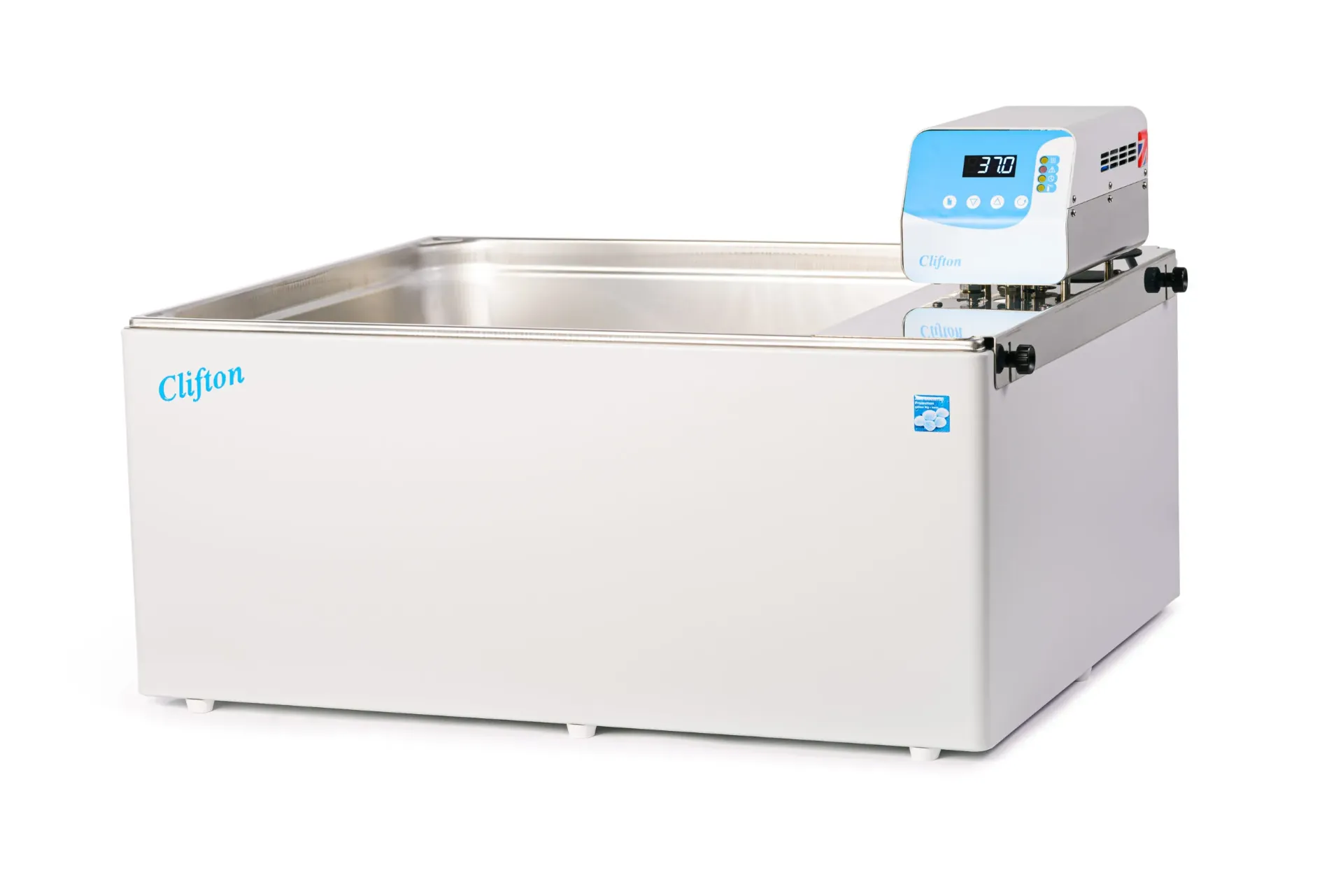

Clifton NE4-56P Circulating Digital Water Bath – 56 Litre

Maximum capacity. Powerful circulation. Precision temperature control.

The Clifton NE4-56P is a 56 litre circulating digital water bath designed for laboratories requiring maximum working capacity combined with the ability to circulate temperature-controlled liquid around an external closed circuit.

Featuring precision PID digital control, a powerful 10 litre/min circulation pump and a 2000W heater, the NE4-56P provides dependable temperature stability across its exceptionally large working chamber while supporting externally connected laboratory applications.

Features & Benefits

  • 56 litre capacity
  • Largest model in the NE4-P range
  • Temperature range: Ambient +5°C to 99°C
  • Precision PID digital temperature control
  • Clear LED temperature display
  • 0.1°C resolution
  • ±0.2°C sensitivity
  • Excellent ±0.02°C uniformity
  • Powerful 10 litre/min circulation pump
  • 150 mbar pump pressure
  • Powerful 2000W heater
  • Inlet and outlet ports for external closed-circuit circulation
  • Can also be used as a conventional stirred water bath
  • 00:01 to 99:59 hh:mm timer
  • Automatic under/over-temperature alarm
  • Low liquid level protection
  • Convenient drain outlet
  • Durable stainless steel construction
  • Factory calibrated at 37°C and 85°C
  • Compatible with the DC1-300 immersion cooler for below-ambient applications
  • 3 Year Warranty
  • Made in Great Britain

Ideal for laboratories requiring maximum working capacity with powerful external circulation, providing a versatile solution for large-scale immersed samples and externally connected temperature-controlled equipment.

Explore the Clifton NE4-P Range

Choose the capacity that best suits your laboratory while benefiting from the precision PID control and powerful external circulation capability of the Clifton NE4-P range.

Maximum capacity. Powerful circulation. Precision you can rely on.

Made in Great Britain

The Clifton Range is made here in Great Britain with the highest quality of materials.

REQUEST A QUOTE

£ 1,785.00 £ 1,785.00
(Tax excluded)
  • Manufacturer
  • Brand
  • Product Code
  • Model Number
  • Size
  • Temperature Range
  • Temperature Control
  • Temperature Alarm
  • Sensitivity
  • Uniformity
  • Timer
  • Pump Capacity and Pressure
  • Pump Connection Ports
  • Heater Power
  • Voltage
  • Drain Outlet
  • External Dimensions (mm)
  • Internal Dimensions (mm)
  • Water Level Max. (mm)
  • Max Depth Above False Base (mm)
Contact Us
Terms and Conditions
Manufacturer Nickel Electro
Brand Clifton
Product Code BTH-NE4-56P-1
Model Number NE4-56P
Size 56 Litres
Temperature Range Ambient + 5°C - 99°C
Temperature Control PID Digital, LED display showing actual or set temperature, resolution 0.1°C
Temperature Alarm Under/over temperature alarm is automatically set 4˚C above and 4˚C below set point
Sensitivity ±0.2°C
Uniformity ±0.02°C
Timer Variable, 00:01 to 99:59 hh:mm Activates at set temperature. End timed period, audible buzzer and and "end" message
Pump Capacity and Pressure 10 litres/min - 150mbar Pressue drop can occur with pipe height, length, bore, bends and liquid temperatures below ambient
Pump Connection Ports Inlet and outlet ports take 4mm bore x 6mm o/d tubing
Heater Power 2000W
Voltage 230V models 50-60Hz
Drain Outlet Yes
External Dimensions (mm) 660w x 540d x 290h
Internal Dimensions (mm) 490w x 500d x 200h
Water Level Max. (mm) 180
Max Depth Above False Base (mm) 145
Manufacturer: Nickel Electro
Brand: Clifton
Product Code: BTH-NE4-56P-1
Model Number: NE4-56P
Size: 56 Litres
Temperature Range: Ambient + 5°C - 99°C
Temperature Control: PID Digital, LED display showing actual or set temperature, resolution 0.1°C
Temperature Alarm: Under/over temperature alarm is automatically set 4˚C above and 4˚C below set point
Sensitivity: ±0.2°C
Uniformity: ±0.02°C
Timer: Variable, 00:01 to 99:59 hh:mm Activates at set temperature. End timed period, audible buzzer and and "end" message
Pump Capacity and Pressure: 10 litres/min - 150mbar Pressue drop can occur with pipe height, length, bore, bends and liquid temperatures below ambient
Pump Connection Ports: Inlet and outlet ports take 4mm bore x 6mm o/d tubing
Heater Power: 2000W
Voltage: 230V models 50-60Hz
Drain Outlet: Yes
External Dimensions (mm): 660w x 540d x 290h
Internal Dimensions (mm): 490w x 500d x 200h
Water Level Max. (mm): 180
Max Depth Above False Base (mm): 145
Documents
Bath-Brochure-2024-compressed.pdf NE4-P Series Spec Sheet.pdf
