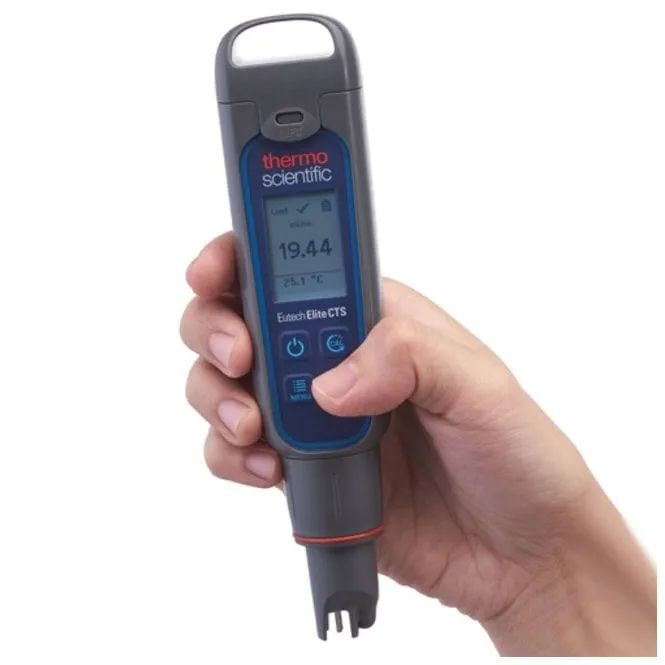

Waterproof Elite CTS Pin Conductivity / TDS / Salinity / Temperature Meter with ATC
Four measurements. Pocket-sized convenience. Waterproof performance.
The Elite CTS Pin is a compact waterproof pocket tester for fast and reliable measurement of conductivity, total dissolved solids (TDS), salinity and temperature.
Designed for convenient testing wherever measurements are required, the tester combines a built-in pin sensor with automatic temperature compensation (ATC) and selectable conductivity, TDS and salinity measurement modes. A clear backlit graphic display and stability indicator make routine measurements quick and straightforward.
Its rugged IP67 waterproof housing makes the Elite CTS Pin particularly well suited to field and production environments, while up to three calibration points provide added confidence across its measurement range.
Compact enough to carry between testing locations, the tester provides up to 150 hours of typical battery life.

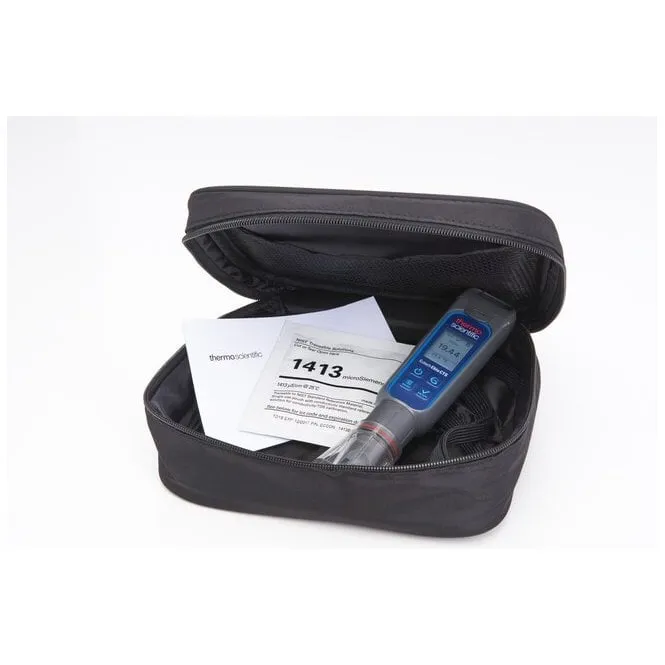

The Elite CTS Pin is supplied ready for use with:
- Elite CTS Pin-Sensor Pocket Tester
- 4 × AAA Batteries
- Lanyard
- Soft Carry Case
Ideal for drinking water, environmental monitoring, food & beverage testing and general water quality analysis.
Compact. Waterproof. Ready to test anywhere.
-
Model Number
-
Series
-
Product Code
-
Product Type
-
Measurements
-
Application
-
Conductivity Range
-
Conductivity Resolution
-
Conductivity Accuracy
-
Conductivity Calibration
-
TDS Range
-
TDS Resolution
-
TDS Accuracy
-
TDS Factor
-
Salinity Range
-
Salinity Resolution
-
Salinity Accuracy
-
Salinity Measurement
-
Temperature Range
-
Temperature Resolution
-
Temperature Accuracy
-
Temperature Compensation
-
Temperature Calibration
-
Temperature Sensor
-
Stability Indicator
-
Display
-
Keypad
-
Housing
-
Operating Temperature
-
Operating Humidity
-
Power Requirement
-
Battery Life
-
Certifications
-
Dimensions
-
Weight
-
Warranty
| Model Number | ELITE CTSPIN |
| Series | ELITE |
| Product Code | WQA-ELITECTSPIN-1 |
| Product Type | Pocket Conductivity / TDS / Salinity / Temperature Meter |
| Measurements | Conductivity / TDS / Salinity / Temperature |
| Application | Drinking Water / Environmental / Food & Beverage / General Water Quality Analysis |
| Conductivity Range | 0.00–20.00 mS/cm |
| Conductivity Resolution | 0.1 µS/cm (0.0–200.0 µS/cm) / 1 µS/cm (200–2000 µS/cm) / 0.01 mS/cm (2.00–20.00 mS/cm) |
| Conductivity Accuracy | ±1% Full Scale |
| Conductivity Calibration | 1 - 3 Points |
| TDS Range | 0.00–10.00 ppt |
| TDS Resolution | 0.1 ppm (0.0–100.0 ppm) / 1 ppm (100–1000 ppm) / 0.01 ppt (0.10–10.00 ppt) |
| TDS Accuracy | ±1% Full Scale |
| TDS Factor | 0.40–1.00 Selectable |
| Salinity Range | 0.00–10.00 ppt |
| Salinity Resolution | 0.10 ppt |
| Salinity Accuracy | ±1% Full Scale |
| Salinity Measurement | Practical Salinity Curve |
| Temperature Range | -30.0–130.0°C / -22.0–266.0°F |
| Temperature Resolution | 0.1°C / °F |
| Temperature Accuracy | ±0.5°C / ±0.9°F |
| Temperature Compensation | Automatic |
| Temperature Calibration | Yes |
| Temperature Sensor | Thermistor |
| Stability Indicator | Yes – “√” Indicator |
| Display | Backlit Graphic Dot Matrix |
| Keypad | 4 Key |
| Housing | IP67 Waterproof |
| Operating Temperature | 5–45°C Ambient |
| Operating Humidity | 5–85% RH, Non-Condensing |
| Power Requirement | 4 × AAA Alkaline Batteries |
| Battery Life | Approx. 150 Hours |
| Certifications | CE / FCC |
| Dimensions | 202 × 45 × 36 mm |
| Weight | 160 g Including Batteries |
| Warranty | 1 Year |
