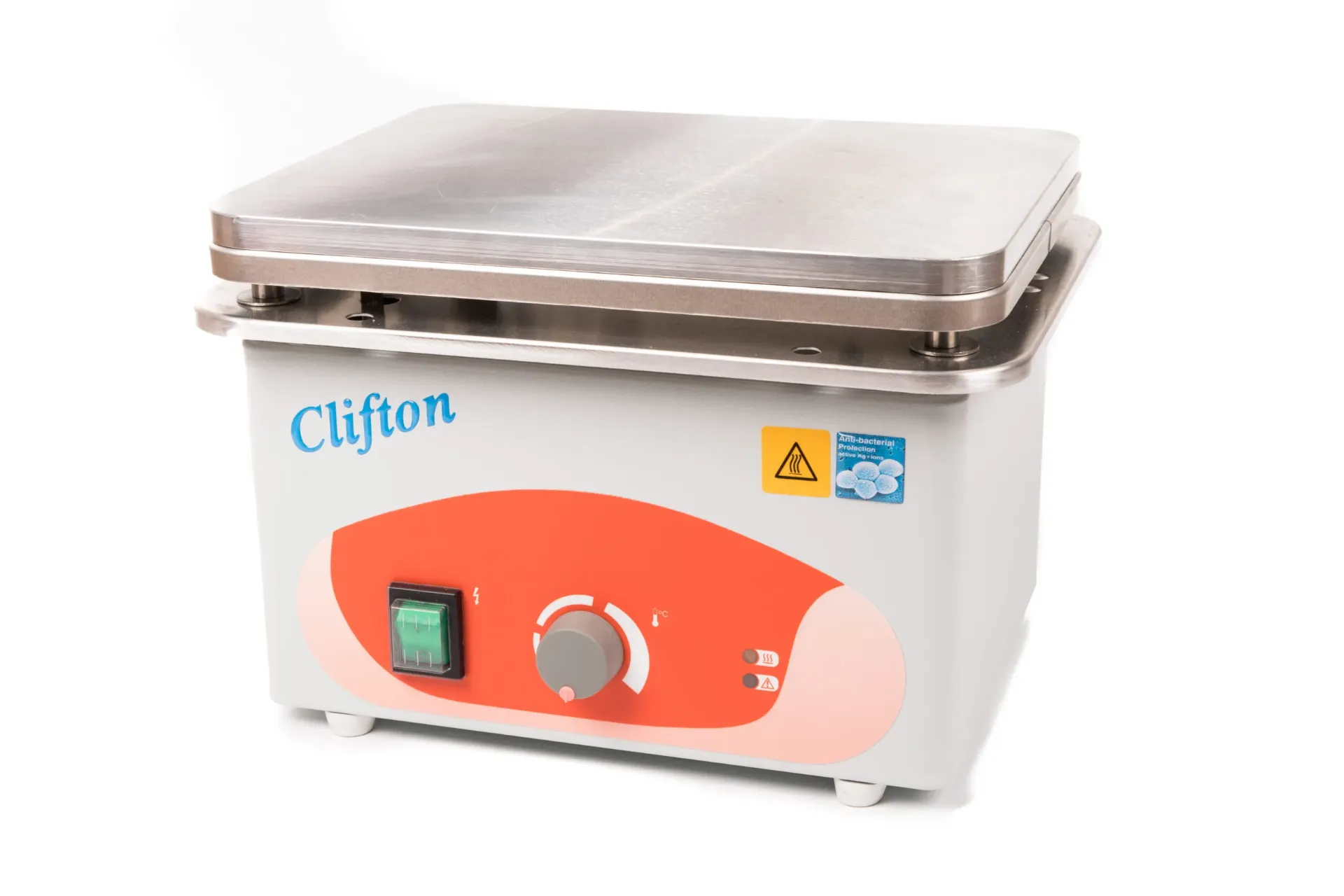

Clifton HP1-1 Analogue Laboratory Hotplate – 305 × 240mm
Simple control. Uniform heating. Built for the laboratory.
The Clifton HP1-1 Analogue Hotplate is a compact, robust laboratory hotplate providing reliable heating from ambient +10°C to 320°C with straightforward analogue temperature control.
Its 12mm-thick solid aluminium hob provides excellent thermal properties and uniform heat distribution, while the overlapping hob design helps prevent accidental spillages from entering the controls.
Features & Benefits
- Temperature range ambient +10°C to 320°C
- Simple analogue dial temperature control
- 305 × 240mm solid aluminium heating surface
- 1000W heater power
- Maximum hob load 8kg at 300°C, evenly distributed
- HOT warning indicator activates above 60°C
- Chemical-resistant, powder-coated construction
- Single M10 retort fixing point
- Can be converted into a sand bath using the optional SB1-1 kit
- 3-year warranty
- Made in Great Britain
Ideal for general laboratory heating, sample preparation, reagent warming and routine scientific applications requiring a durable and easy-to-operate hotplate.
Other Models in the Range
- HP1-1 – 305 × 240mm hob | 1000W
- HP1-2 – 457 × 305mm hob | 2000W
- HP1-3 – 686 × 305mm hob | 2400W
Choose the Clifton HP1 size that best suits your laboratory workload, from the compact HP1-1 through to the extra-large HP1-3.
Reliable heating. Simple operation. British-built quality.
Made in Great Britain
-
Manufacturer
-
Product Code
-
Model Number
-
Temperature Range
-
Temperature Control
-
Temperature Alarm
-
Timer
-
Sensitivity
-
Hob Max. Load
-
Retort Points
-
Heater Power
-
Voltage
-
External Dimensions (mm)
-
Hob Dimensions
| Manufacturer | Clifton Range |
| Product Code | HPL-HP1-1-1 |
| Model Number | HP1-1 |
| Temperature Range | Ambient +10°C - 320°C |
| Temperature Control | Analogue dial pointer |
| Temperature Alarm | No |
| Timer | No |
| Sensitivity | ±10°C at 150°C |
| Hob Max. Load | 8 kg at 300°C |
| Retort Points | Single M10 fixing point, rear hotplate |
| Heater Power | 1000W |
| Voltage | 230V |
| External Dimensions (mm) | 325w x 260d x 200h |
| Hob Dimensions | 305w x 240d |
| Manufacturer: Clifton Range |
| Product Code: HPL-HP1-1-1 |
| Model Number: HP1-1 |
| Temperature Range: Ambient +10°C - 320°C |
| Temperature Control: Analogue dial pointer |
| Temperature Alarm: No |
| Timer: No |
| Sensitivity: ±10°C at 150°C |
| Hob Max. Load: 8 kg at 300°C |
| Retort Points: Single M10 fixing point, rear hotplate |
| Heater Power: 1000W |
| Voltage: 230V |
| External Dimensions (mm): 325w x 260d x 200h |
| Hob Dimensions: 305w x 240d |
