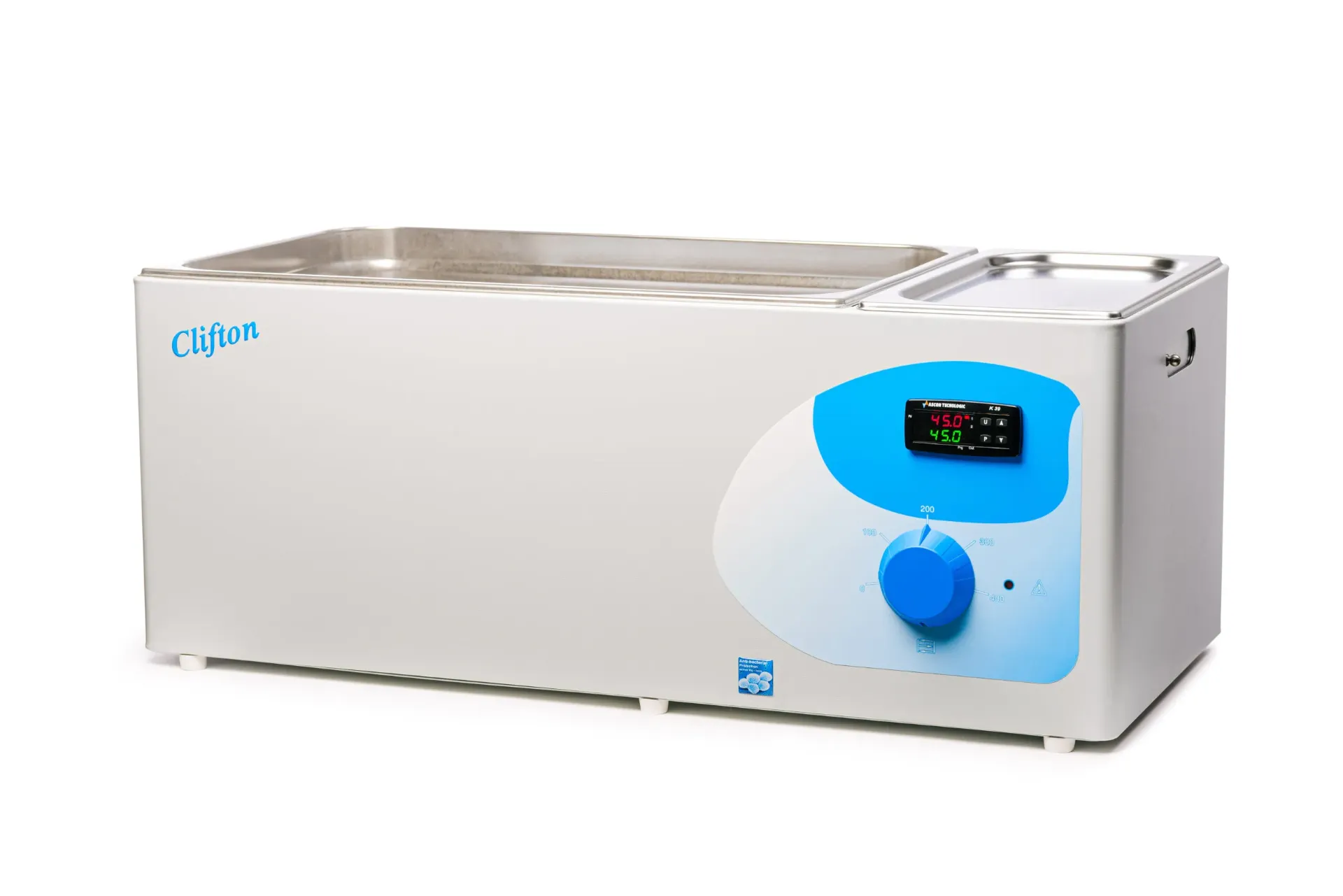

Clifton NE5-28DT Digital Shaking Water Bath with Timer – 28 Litre
Digital precision. Controlled shaking. Integrated timing.
The Clifton NE5-28DT Digital Shaking Water Bath combines precision PID temperature control, variable linear shaking and an integrated timer, providing a versatile solution for controlled laboratory incubation, mixing and sample preparation.
The generous 28 litre stainless steel chamber operates from ambient +5°C to 100°C, with a clear LED display showing both set and actual temperature. Shaking is adjustable from 0–400 strokes per minute, with a variable stroke length up to 40mm.
The built-in timer can be set from 00:01 to 99:59 hours/minutes and activates once the set temperature is reached, helping provide consistent and repeatable timed processes. Timer settings are retained even after the unit is switched off.
Features & Benefits
- 28 litre stainless steel chamber
- PID digital temperature control
- Temperature range ambient +5°C to 100°C
- Variable shaking 0–400 strokes/min
- Adjustable stroke length up to 40mm
- Built-in 00:01–99:59 timer
- Temperature sensitivity & uniformity ±0.1°C at 45°C
- Automatic under/over-temperature alarm
- Convenient drain outlet
- 3-year warranty
- Made in Great Britain
Flexible Sample Handling
Compatible with optional flask clips, flask trays, test tube racks and universal spring trays, allowing the NE5-28DT to be configured for a wide range of laboratory vessels and applications.
Ideal for incubation, sample agitation, mixing and timed temperature-controlled applications where precise heating and consistent shaking are essential.
Precise temperature. Controlled shaking. Perfect timing.
Made in Great Britain
The Clifton Range is made here in Great Britain with the highest quality of materials.
-
Manufacturer
-
Brand
-
Product Code
-
Model Number
-
Size
-
Temperature Range
-
Temperature Alarm
-
Temperature Control
-
Sensitivity
-
Uniformity
-
Heater Power
-
Timer
-
Voltage
-
Linear Shaking Control
-
Stroke Length
-
Speed Display
-
Drain Outlet
-
External Dimensions (mm)
-
Internal Dimensions (mm)
-
Perforated Shelf/Trolley Size (mm)
-
Water Level Max. (mm)
-
Water Level Min. (mm)
| Manufacturer | Nickel Electro |
| Brand | Clifton |
| Product Code | BTH-NE5-28DT-1 |
| Model Number | NE5-28DT |
| Size | 28 Litres |
| Temperature Range | Ambient + 5°C - 100°C |
| Temperature Alarm | Under/over temperature alarm is automatically set 4˚C above and 4˚C below set point |
| Temperature Control | PID Digital, LED display showing actual or set temperature, resolution 0.1°C |
| Sensitivity | ±0.1°C at 45°C Optimal water level 75 to 120mm |
| Uniformity | ±0.1°C at 45°C Optimal water level 75 to 120mm |
| Heater Power | 1000W |
| Timer | Indicator and end message Variable, 00:01 to 99:59 [hh:mm], activates at set temperature |
| Voltage | 230V models 50-60Hz |
| Linear Shaking Control | Shaking control variable 0 to 400 strokes / 0 to 200rpm |
| Stroke Length | Variable up to 40mm stroke |
| Speed Display | Analogue |
| Drain Outlet | Yes |
| External Dimensions (mm) | 715w x 332d x 290h |
| Internal Dimensions (mm) | 500w x 298x x 200h |
| Perforated Shelf/Trolley Size (mm) | 389w x 270d |
| Water Level Max. (mm) | 120 |
| Water Level Min. (mm) | 50 |
| Manufacturer: Nickel Electro |
| Brand: Clifton |
| Product Code: BTH-NE5-28DT-1 |
| Model Number: NE5-28DT |
| Size: 28 Litres |
| Temperature Range: Ambient + 5°C - 100°C |
| Temperature Alarm: Under/over temperature alarm is automatically set 4˚C above and 4˚C below set point |
| Temperature Control: PID Digital, LED display showing actual or set temperature, resolution 0.1°C |
| Sensitivity: ±0.1°C at 45°C Optimal water level 75 to 120mm |
| Uniformity: ±0.1°C at 45°C Optimal water level 75 to 120mm |
| Heater Power: 1000W |
| Timer: Indicator and end message Variable, 00:01 to 99:59 [hh:mm], activates at set temperature |
| Voltage: 230V models 50-60Hz |
| Linear Shaking Control: Shaking control variable 0 to 400 strokes / 0 to 200rpm |
| Stroke Length: Variable up to 40mm stroke |
| Speed Display: Analogue |
| Drain Outlet: Yes |
| External Dimensions (mm): 715w x 332d x 290h |
| Internal Dimensions (mm): 500w x 298x x 200h |
| Perforated Shelf/Trolley Size (mm): 389w x 270d |
| Water Level Max. (mm): 120 |
| Water Level Min. (mm): 50 |
