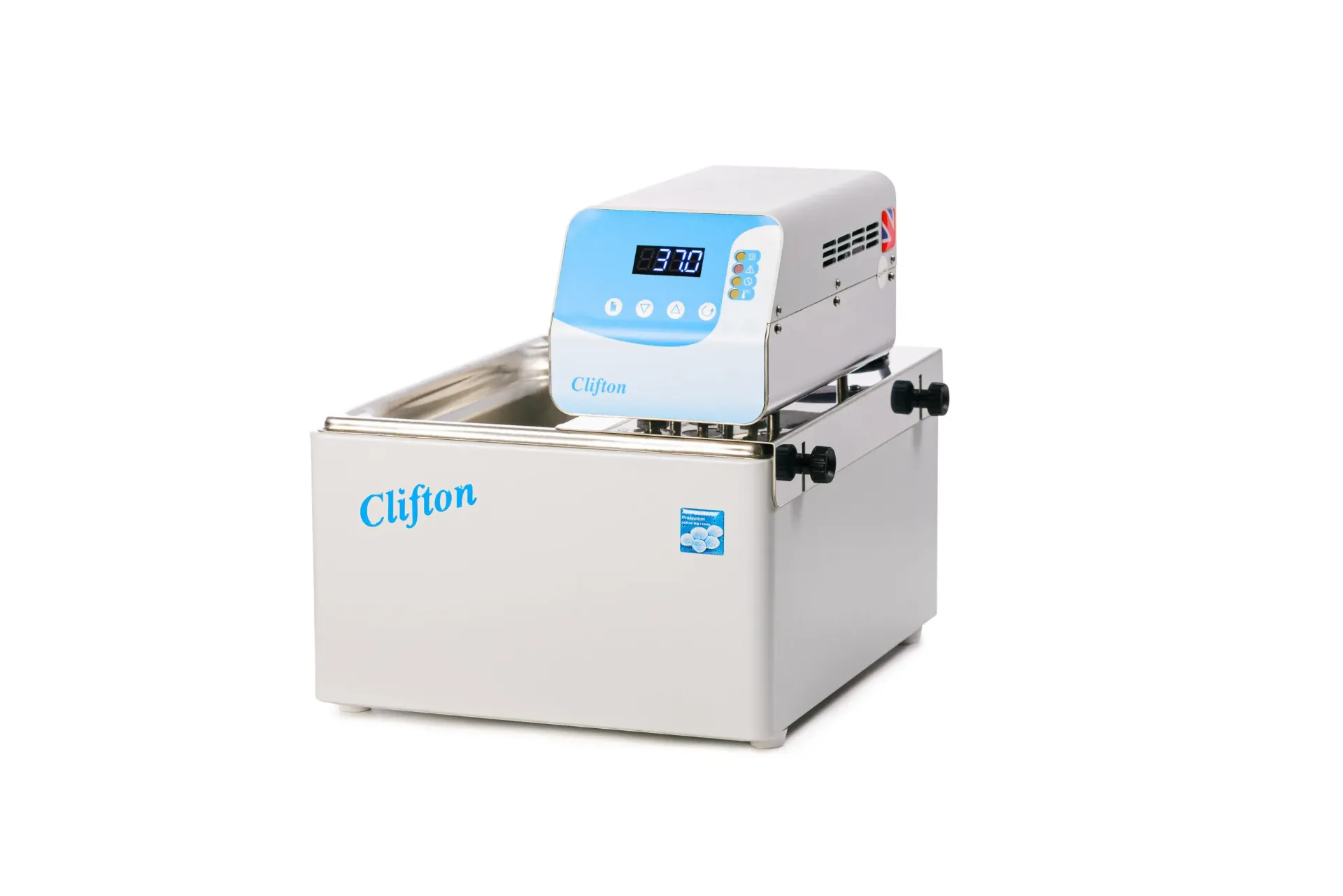

Clifton NE4-8HT High Temperature Circulating Digital Water Bath – 8 Litre

High temperature. Digital precision. Powerful external circulation.

The Clifton NE4-8HT is an 8 litre high-temperature circulating digital water bath designed for applications requiring precise temperature control and external closed-circuit circulation at temperatures up to 130°C.

Featuring PID digital control and a powerful 10 litre/min circulation pump, the NE4-8HT provides exceptional temperature stability for both immersed samples and externally connected laboratory applications.

Features & Benefits

  • 8 litre capacity
  • High temperature range: Ambient +5°C to 130°C
  • Precision PID digital temperature control
  • Clear LED temperature display
  • 0.1°C resolution
  • Excellent ±0.05°C sensitivity
  • Exceptional ±0.01°C uniformity
  • Powerful 10 litre/min circulation pump
  • 150 mbar pump pressure
  • External closed-circuit circulation
  • Suitable for temperature-controlled water or heat-transfer fluids
  • 00:01 to 99:59 hh:mm timer
  • Automatic under/over-temperature alarm
  • Adjustable second safety device for additional sample protection
  • Low liquid level protection
  • Durable stainless steel construction
  • 1250W heater
  • 3 Year Warranty
  • Made in Great Britain

Ideal for laboratories requiring precise high-temperature control with external circulation capability, providing reliable performance for demanding temperature-controlled applications.

Explore the Clifton NE4-HT Range


Choose the capacity that best suits your laboratory while benefiting from high-temperature operation, precision PID control and powerful external circulation.

Higher temperatures. Precise control. Powerful circulation.

Made in Great Britain

The Clifton Range is made here in Great Britain with the highest quality of materials.

REQUEST A QUOTE

£ 1,115.00 £ 1,115.00
(Tax excluded)
  • Manufacturer
  • Brand
  • Product Code
  • Model Number
  • Size
  • Temperature Range
  • Temperature Control
  • Temperature Alarm
  • Second Safety Device
  • Sensitivity
  • Uniformity
  • Timer
  • Pump Capacity and Pressure
  • Pump Connection Ports
  • Heater Power
  • Voltage
  • External Dimensions (mm)
  • Internal Dimensions (mm)
  • Water Level Max. (mm)
  • Max Depth Above False Base (mm)
Contact Us
Terms and Conditions
Manufacturer Nickel Electro
Brand Clifton
Product Code BTH-NE4-8HT-1
Model Number NE4-8HT
Size 8 Litres
Temperature Range Ambient + 5°C - 130°C Accessory DC1-300 provides cooling from ambient to -20°C
Temperature Control PID Digital, LED display showing actual or set temperature, resolution 0.1°C
Temperature Alarm Under/over temperature alarm is automatically set 4˚C above and 4˚C below set point
Second Safety Device Yes
Sensitivity ±0.05°C
Uniformity ±0.01°C
Timer Variable, 00:01 to 99:59 hh:mm Activates at set temperature. End timed period, audible buzzer and and "end" message.
Pump Capacity and Pressure 10 litres/min - 150mbar Pressue drop can occur with pipe height, length, bore, bends and liquid temperatures below ambient
Pump Connection Ports Inlet and outlet ports take 4mm bore x 6mm o/d tubing
Heater Power 1250W
Voltage 120V or 230V models available 50-60Hz
External Dimensions (mm) 271w x 332d x 170h
Internal Dimensions (mm) 129w x 300d x 150h
Water Level Max. (mm) 130

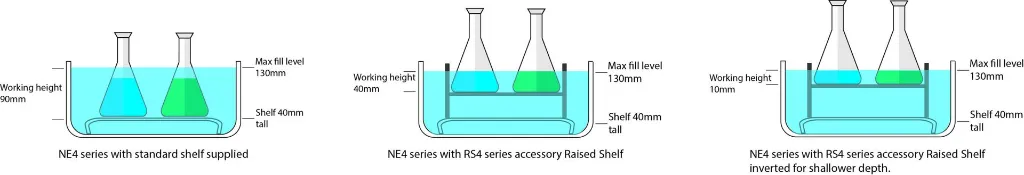

Max Depth Above False Base (mm) 95
Manufacturer: Nickel Electro
Brand: Clifton
Product Code: BTH-NE4-8HT-1
Model Number: NE4-8HT
Size: 8 Litres
Temperature Range: Ambient + 5°C - 130°C Accessory DC1-300 provides cooling from ambient to -20°C
Temperature Control: PID Digital, LED display showing actual or set temperature, resolution 0.1°C
Temperature Alarm: Under/over temperature alarm is automatically set 4˚C above and 4˚C below set point
Second Safety Device: Yes
Sensitivity: ±0.05°C
Uniformity: ±0.01°C
Timer: Variable, 00:01 to 99:59 hh:mm Activates at set temperature. End timed period, audible buzzer and and "end" message.
Pump Capacity and Pressure: 10 litres/min - 150mbar Pressue drop can occur with pipe height, length, bore, bends and liquid temperatures below ambient
Pump Connection Ports: Inlet and outlet ports take 4mm bore x 6mm o/d tubing
Heater Power: 1250W
Voltage: 120V or 230V models available 50-60Hz
External Dimensions (mm): 271w x 332d x 170h
Internal Dimensions (mm): 129w x 300d x 150h
Water Level Max. (mm): 130
Max Depth Above False Base (mm): 95
