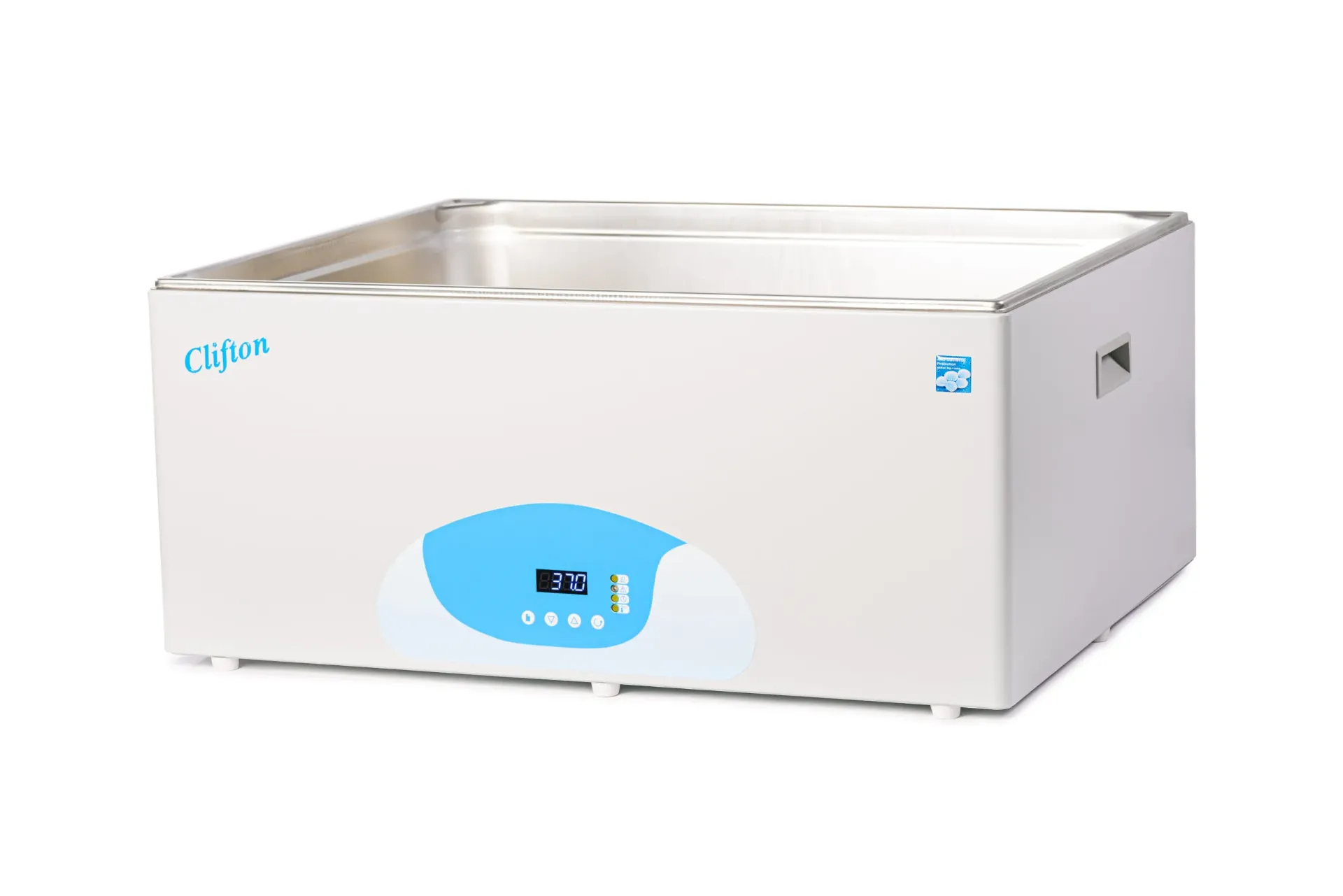

Clifton NE3-56DT Pro Digital Water Bath – 56L High Capacity, Programmable Timer & PID Control
Maximum capacity. Precision control. Intelligent programmable timing.
The Clifton NE3-56DT is the largest model in the NE3DT range, offering a substantial 56 litre capacity for laboratories requiring maximum working space combined with precision PID temperature control and programmable timing.
The run-back timer operates from 00:01 to 99:59 hours/minutes and activates once the set temperature is reached, while the delay-start timer allows heating to commence at a selected time within the next 24 hours.
Features & Benefits
- 56 litre capacity
- Temperature range: Ambient +5°C to 100°C
- Precision PID digital temperature control
- Run-back timer: 00:01 to 99:59
- Delay-start timer up to 24 hours
- Clear LED temperature & time display
- 0.1°C resolution
- ±0.2°C sensitivity
- ±0.1°C uniformity
- Automatic over-temperature alarm
- Powerful 2500W heater
- Integrated drain tap
- Large 200mm deep stainless steel chamber
- 3 Year Warranty
- Made in Great Britain
Ideal for larger vessels, batch processing, multiple test tube racks and high-throughput laboratory applications requiring maximum capacity with precise temperature control and programmable timing.
Explore the Clifton NE3DT Pro Digital Range
- NE3-4DT – 4L Pro Digital Water Bath
- NE3-8DT – 8L Pro Digital Water Bath
- NE3-14DT – 14L Pro Digital Water Bath
- NE3-28DT – 28L Deep-Chamber Pro Digital Water Bath
- NE3-56DT – 56L High-Capacity Pro Digital Water Bath
Choose the capacity that best suits your laboratory while benefiting from the same precision PID control and intelligent programmable timing.
Maximum capacity. Programmable control. Professional laboratory performance.
Made in Great Britain
The Clifton Range is made here in Great Britain with the highest quality of materials.
-
Manufacturer
-
Brand
-
Product Code
-
Model Number
-
Size
-
Temperature Range
-
Temperature Control
-
Temperature Alarm
-
Temperature Control and run back timer
-
Temperature Control and delay start timer timer
-
Sensitivity
-
Uniformity
-
Heater Power
-
Voltage
-
Drain Tap Fitted
-
Lid Fitted
-
External Dimensions (mm)
-
Internal Dimensions (mm)
-
Water Level Max. (mm)
-
Water Level Min. (mm)
-
Max Depth Above False Base (mm)
| Manufacturer | Nickel Electro |
| Brand | Clifton |
| Product Code | BTH-NE3-56DT-1 |
| Model Number | NE3-56DT |
| Size | 56 Litres |
| Temperature Range | Ambient + 5°C - 100°C |
| Temperature Control | PID Digital, LED display showing actual or set temperature, resolution 0.1°C |
| Temperature Alarm | Over temperature alarm is automatically set 4˚C above set point |
| Temperature Control and run back timer | Indicator and end message (variable, 00:01 to 99:59 [hh:mm], activates at set temperature) |
| Temperature Control and delay start timer timer | Heating commences at a set time in future (Within 24 hours, useful for pre-conditioning water bath ready for use.) |
| Sensitivity | ±0.2°C |
| Uniformity | ±0.1°C |
| Heater Power | 2500W |
| Voltage | 120V or 230V models available 50-60Hz |
| Drain Tap Fitted | Yes |
| Lid Fitted | No |
| External Dimensions (mm) | 660w x 540d x 290h |
| Internal Dimensions (mm) | 620w 500d x 200h |
| Water Level Max. (mm) | 180 |
| Water Level Min. (mm) | 55 |
| Max Depth Above False Base (mm) | 165 |
| Manufacturer: Nickel Electro |
| Brand: Clifton |
| Product Code: BTH-NE3-56DT-1 |
| Model Number: NE3-56DT |
| Size: 56 Litres |
| Temperature Range: Ambient + 5°C - 100°C |
| Temperature Control: PID Digital, LED display showing actual or set temperature, resolution 0.1°C |
| Temperature Alarm: Over temperature alarm is automatically set 4˚C above set point |
| Temperature Control and run back timer: Indicator and end message (variable, 00:01 to 99:59 [hh:mm], activates at set temperature) |
| Temperature Control and delay start timer timer: Heating commences at a set time in future (Within 24 hours, useful for pre-conditioning water bath ready for use.) |
| Sensitivity: ±0.2°C |
| Uniformity: ±0.1°C |
| Heater Power: 2500W |
| Voltage: 120V or 230V models available 50-60Hz |
| Drain Tap Fitted: Yes |
| Lid Fitted: No |
| External Dimensions (mm): 660w x 540d x 290h |
| Internal Dimensions (mm): 620w 500d x 200h |
| Water Level Max. (mm): 180 |
| Water Level Min. (mm): 55 |
| Max Depth Above False Base (mm): 165 |
