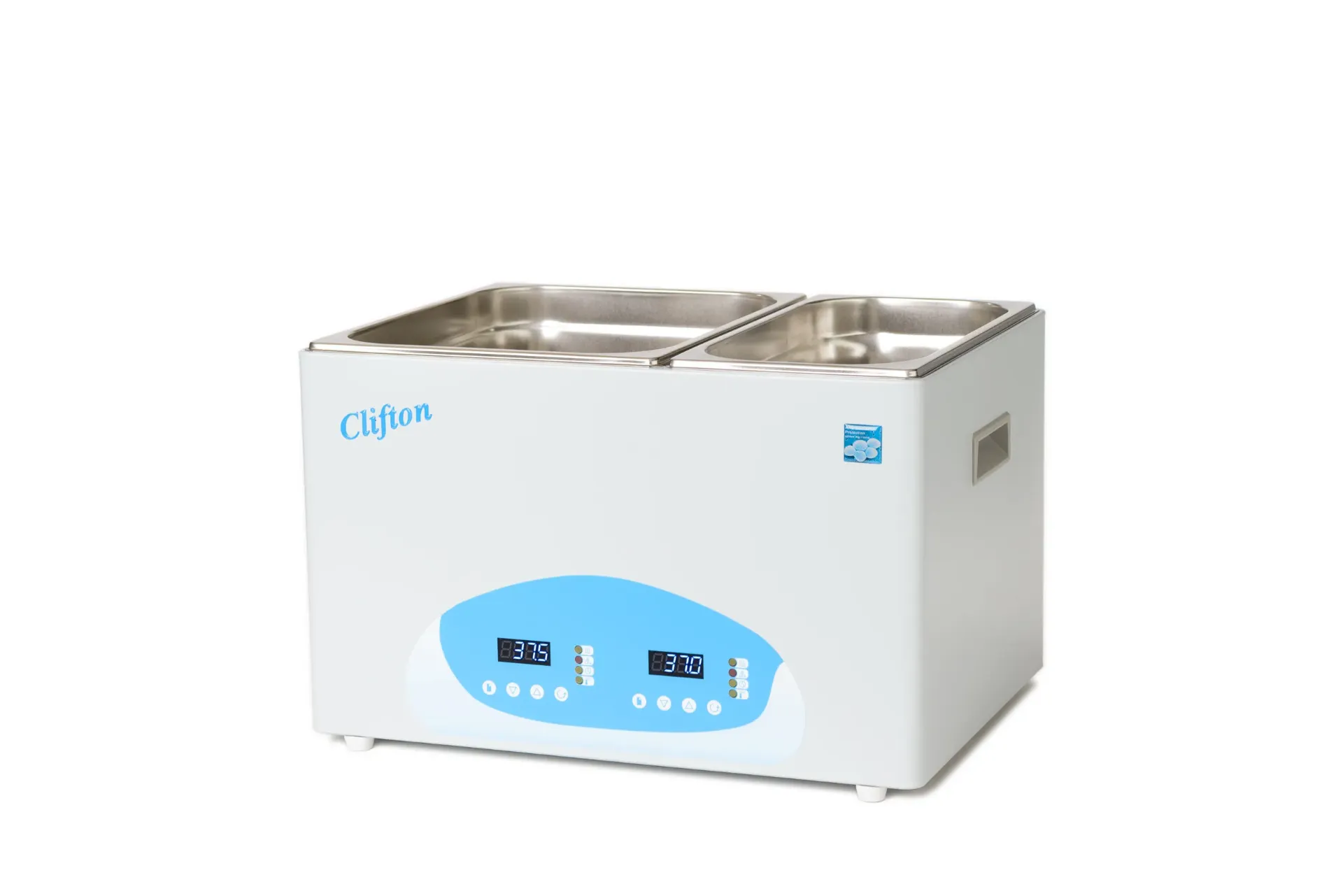

Clifton DuoBath™ Digital Water Bath NE2D-4/8 – Dual 4L + 8L Chambers, Independent PID Control

Two bath sizes. One unit. Independent temperature control.

The Clifton NE2D-4/8 DuoBath™ combines 4 litre and 8 litre independently controlled water baths in one space-saving unit, giving laboratories greater flexibility without requiring two separate baths.

Each chamber features its own precision PID digital control and timer, allowing two different temperatures or applications to run simultaneously. Alternatively, either chamber can be placed into standby when not required.

Features & Benefits

  • Dual 4L + 8L chambers
  • Two independently controlled water baths
  • Temperature range: Ambient +5°C to 99°C
  • Precision PID digital temperature control
  • 0.1°C resolution
  • ±0.2°C sensitivity
  • ±0.1°C uniformity
  • Excellent +0.1°C cross-tank sensitivity
  • Run-back & delay-start timer
  • Individual chamber standby control
  • Automatic over-temperature alarm
  • Stainless steel chambers
  • Multiple shelf heights for greater flexibility
  • 3 Year Warranty
  • Made in Great Britain

Ideal for laboratories running two temperature-controlled applications simultaneously, with two different chamber capacities providing additional flexibility while helping save valuable bench space.

Explore the Clifton DuoBath™ Range

  • NE2D-4/4 – Dual 4L + 4L Digital DuoBath™
  • NE2D-4/8 – Dual 4L + 8L Digital DuoBath™

Choose the configuration that best suits your laboratory while benefiting from two independently controlled chambers in one space-saving unit.

Two baths. Two capacities. One intelligent solution.



Made in Great Britain

The Clifton Range is made here in Great Britain with the highest quality of materials.

REQUEST A QUOTE

£ 0.00 £ 0.00
(Tax excluded)
  • Manufacturer
  • Brand
  • Product Code
  • Model Number
  • Size
  • Temperature Range
  • Temperature Control
  • Temperature Alarm
  • Sensitivity
  • Uniformity
  • Cross Tank Sensitivity
  • Heater Power
  • Voltage
  • Drain Tap Fitted
  • Lockable Dial
  • External Dimensions (mm)
  • Internal Dimensions (mm)
  • Water Level Max. (mm)
  • Water Level Min. (mm)
Terms and Conditions
Manufacturer Nickel Electro
Brand Clifton
Product Code BTH-NE2D-4/8-1
Model Number NE2D-4/8
Size 1x 4 Litre Bath / 1x 8 Litre Bath
Temperature Range Ambient + 5°C - 99°C
Temperature Control PID Digital, LED display showing actual or set temperature, resolution 0.1°C
Temperature Alarm Over temperature alarm is automatically set 4˚C above set point
Sensitivity ±0.2°C
Uniformity ±0.1°C
Cross Tank Sensitivity 60°C tank effect on 37°C tank +0.1°
Heater Power 1200W
Voltage 230V models 50-60Hz
Drain Tap Fitted Yes
Lockable Dial Yes
External Dimensions (mm) 450w x 332d x 290h
Internal Dimensions (mm) 150w x 300d x 150h (4 Litre) / 240w x 300d x 150h (8 Litre)
Water Level Max. (mm) 130
Water Level Min. (mm) 55
Manufacturer: Nickel Electro
Brand: Clifton
Product Code: BTH-NE2D-4/8-1
Model Number: NE2D-4/8
Size: 1x 4 Litre Bath / 1x 8 Litre Bath
Temperature Range: Ambient + 5°C - 99°C
Temperature Control: PID Digital, LED display showing actual or set temperature, resolution 0.1°C
Temperature Alarm: Over temperature alarm is automatically set 4˚C above set point
Sensitivity: ±0.2°C
Uniformity: ±0.1°C
Cross Tank Sensitivity: 60°C tank effect on 37°C tank +0.1°
Heater Power: 1200W
Voltage: 230V models 50-60Hz
Drain Tap Fitted: Yes
Lockable Dial: Yes
External Dimensions (mm): 450w x 332d x 290h
Internal Dimensions (mm): 150w x 300d x 150h (4 Litre) / 240w x 300d x 150h (8 Litre)
Water Level Max. (mm): 130
Water Level Min. (mm): 55
