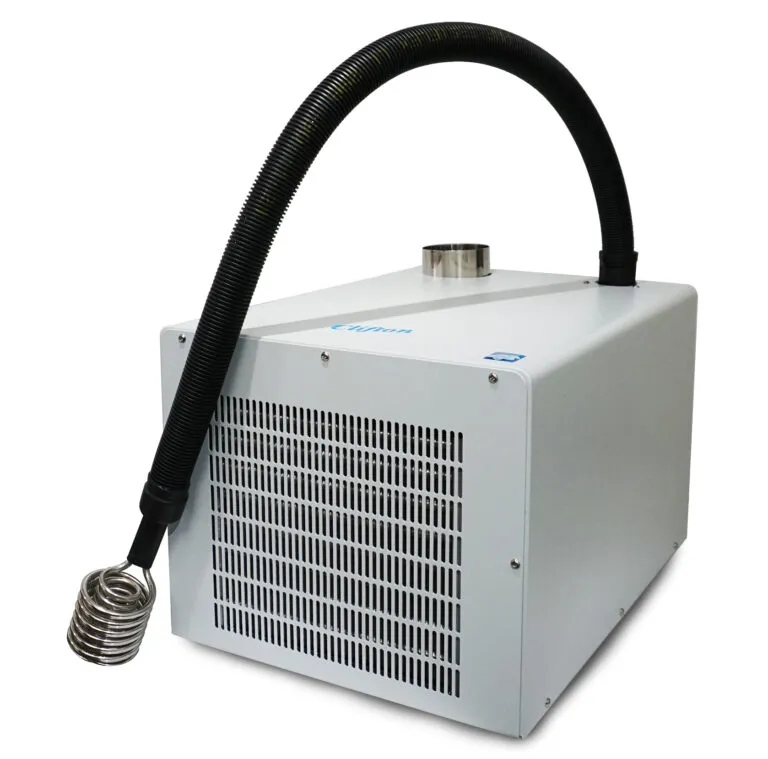

Clifton DC1-300 Immersion Cooler – Laboratory Water Bath Cooling System
Extend your water bath below ambient. Powerful cooling. Greater temperature control.
The Clifton DC1-300 Immersion Cooler is designed for use with compatible Clifton NE4 stirred and circulating water baths, providing continuous counter-cooling for applications requiring temperatures below ambient.
Featuring a stainless steel cooling coil on a flexible 900mm cooling line, the DC1-300 fits neatly into the corner of the water bath to maximise the available working area. Used alongside the water bath's own temperature controller, it enables controlled applications down to -20°C, subject to bath capacity and operating conditions.
Features & Benefits
- Enables compatible Clifton water baths to operate below ambient temperature
- Temperature range -20°C to +20°C
- Provides continuous counter-cooling
- Stainless steel cooling coil
- Flexible 900mm cooling line
- Compact coil design helps maximise usable bath space
- Cooling power up to 800W at 10°C
- Ideal for use with water/glycol mixtures
- Designed for Clifton stirred and circulating water baths
- 3-year manufacturer's warranty
- Made in Great Britain
Cooling Performance
- 10°C: 800W
- 0°C: 580W
- -10°C: 400W
- -20°C: 250W
Compatible Clifton Water Baths
Designed for compatible Clifton NE4 stirred and circulating water baths, excluding the NE4-T range. It is not suitable for unstirred water baths.
For optimum cooling performance, Clifton recommends using a suitable lid or BP0368 polypropylene spheres to minimise heat transfer and energy loss.
Ideal for laboratories that need to extend their Clifton water bath capabilities below ambient without investing in a separate refrigerated bath system.
Cool below ambient. Expand your applications. Genuine Clifton performance.
Made in Great Britain
The 1100 Series is made here in Great Britain with the highest quality of materials.
-
Manufacturer
-
Product Code
-
Model Number
-
Temperature Range
-
Temperature Control
-
Cooling Power
-
Power Consumption
-
Voltage
-
External Dimensions (mm)
-
Cooling Coil
| Manufacturer | Clifton Range |
| Product Code | BTH-DC1-300-1 |
| Model Number | DC1-300 |
| Temperature Range | -20 to 20°C Refer to Recommended fluids for fluid type and working temperature range |
| Temperature Control | None - Continuously providing counter cooling with water bath providing temperature control |
| Cooling Power | 10°C: 800W 0°C: 580W -10°C: 400W -20°C: 250W Refrigerant: R134a |
| Power Consumption | 600W |
| Voltage | 230V models 50-60Hz |
| External Dimensions (mm) | 345w x 445d x 265h |
| Cooling Coil | Stainless steel coil wound diameter 65mm on the end of a 900mm long flexible cooling line |
| Manufacturer: Clifton Range |
| Product Code: BTH-DC1-300-1 |
| Model Number: DC1-300 |
| Temperature Range: -20 to 20°C Refer to Recommended fluids for fluid type and working temperature range |
| Temperature Control: None - Continuously providing counter cooling with water bath providing temperature control |
| Cooling Power: 10°C: 800W 0°C: 580W -10°C: 400W -20°C: 250W Refrigerant: R134a |
| Power Consumption: 600W |
| Voltage: 230V models 50-60Hz |
| External Dimensions (mm): 345w x 445d x 265h |
| Cooling Coil: Stainless steel coil wound diameter 65mm on the end of a 900mm long flexible cooling line |
